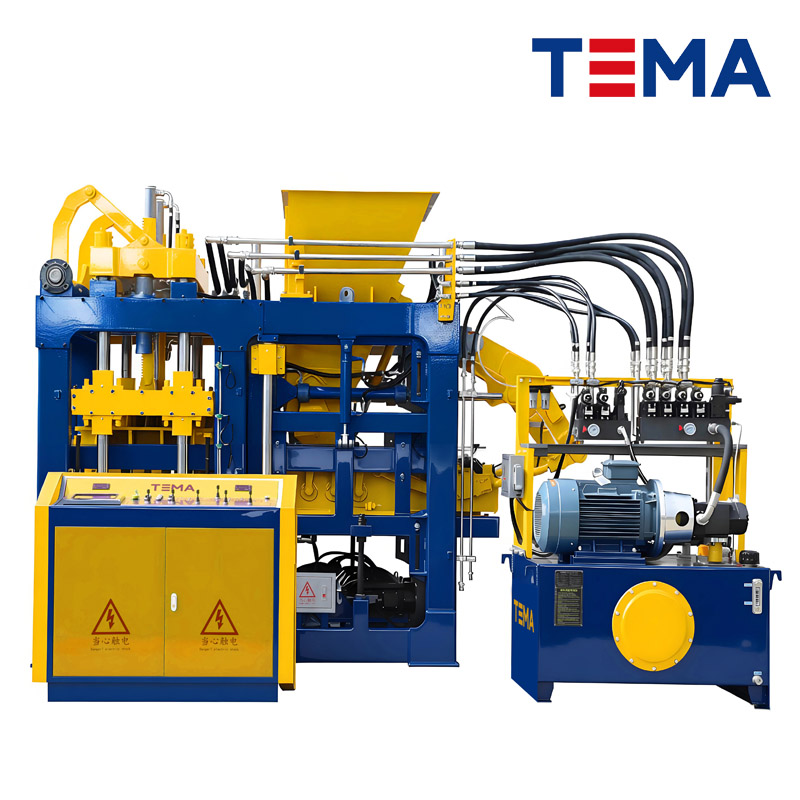

The TM9000 is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
TM9000 Strong Vibration Brick Machine for Paver Block Brick Manufacturing
The TM9000 is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks.
| TM9000 Specifications | |
|---|---|
| Pallet Size: 1400×700×35 mm | Vibration Force: 2×12.8kw (Servo-driven Controlled) / 120-135 KN |
| Forming Area: 1350×650 mm | Control System: Siemens PLC Control, Online Remote Service |
| Products Height: 50-200 mm, able to reach 500mm | Feeder Car Design: Double swing arms driven (Siemens motor) |
| Cycle Time: 15-20 Seconds | Hydraulic System: 30kw (Japanese Yuken proportional valves) |
| Machine Gross Weight: 15 Ton | Power Consumption: 65.35 kW |
| Product Type | Size (mm) | Pieces/Cycle | Production / 8-10 hours |
|---|---|---|---|
| Hollow Block | 400×200×200 | 9 | 11,000 - 14,000 |
| Hollow Block | 400×150×200 | 12 | 14,000 - 18,000 |
| Rectangular Paver | 200×100×60 | 36 | 36,000 - 54,000 |
| Zigzag Paver | 225×112.5×60 | 30 | 30,000 - 45,000 |
By simply replacing the molds, the TM9000 machine serves as a multi-purpose manufacturing equipment for various concrete blocks:
The TM9000 is a versatile concrete paving brick making machine. By changing the molds, it can efficiently produce paving bricks, hollow blocks, solid cement bricks, interlocking pavers, curbstones, and retaining wall blocks.
For standard 400x200x200mm hollow blocks, this automatic paving brick machine yields about 11,000 to 14,000 pieces per 8-10 hour shift, making it an excellent investment for medium to large-scale mass production.
Yes. Our TM9000 Paving brick manufacturing equipment is designed to utilize crushed stone, sand, cement, as well as coal fly ash, cinder, slag, and other industrial wastes, helping you save on material costs while producing high-quality masonry products.
