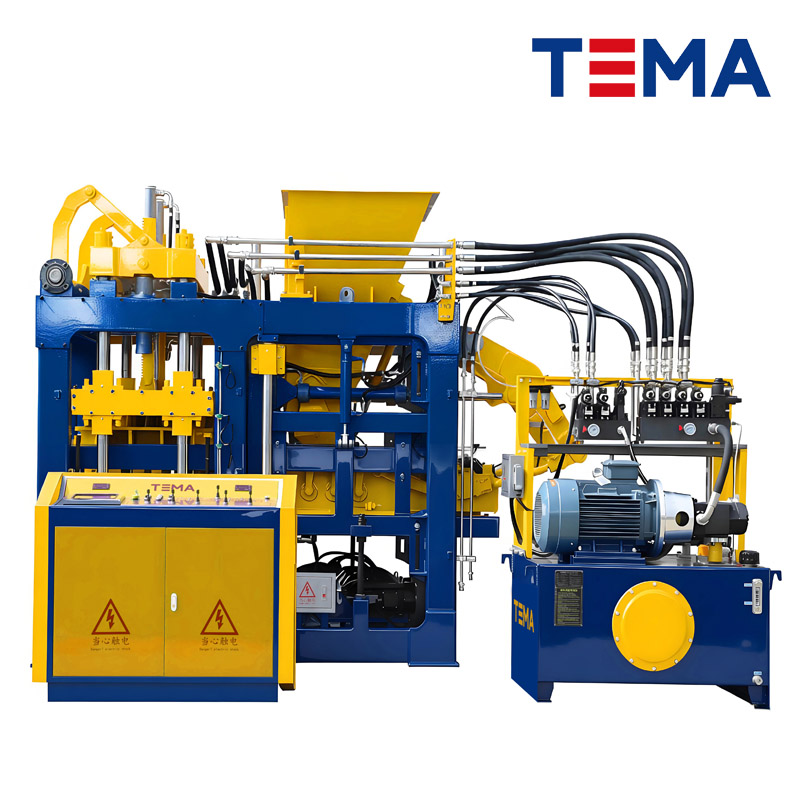

TM10000 Servo-Driven Vibration Concrete Paver Block Machine is a state-of-the-art machine for concrete block manufacturing, delivering exceptional efficiency and precision. It has a pallet size of 1100 × 950mm which can maximum produce 15,000 pieces of 400×200×200mm hollow blocks or 1,000 square meter paver stone in 8 working hours.
|
Pallet Size: |
1100×950×30（mm） |
|
Vibration Motors |
2×12.8kw Servo drives-controlled Italian Physis servo motors |
|
Vibration Table |
Dynamic and static vibration table |
|
Control System |
German Siemens PLC Control |
|
Hydraulic System |
Japanese Yuken Proportional hydraulic valves, 30kw motor |
|
Feeder Car Design |
Double swing arms driven, Powered by 5.5kw motor |
|
Products Height |
50-200mm, possible to heighten to 500mm |
|
Cycle Time: |
15-20 Seconds |
|
Power Consumption: |
61.5 kW |
|
Machine Gross Weight |
14 Ton (Without mold and without Face Mix Hopper) |

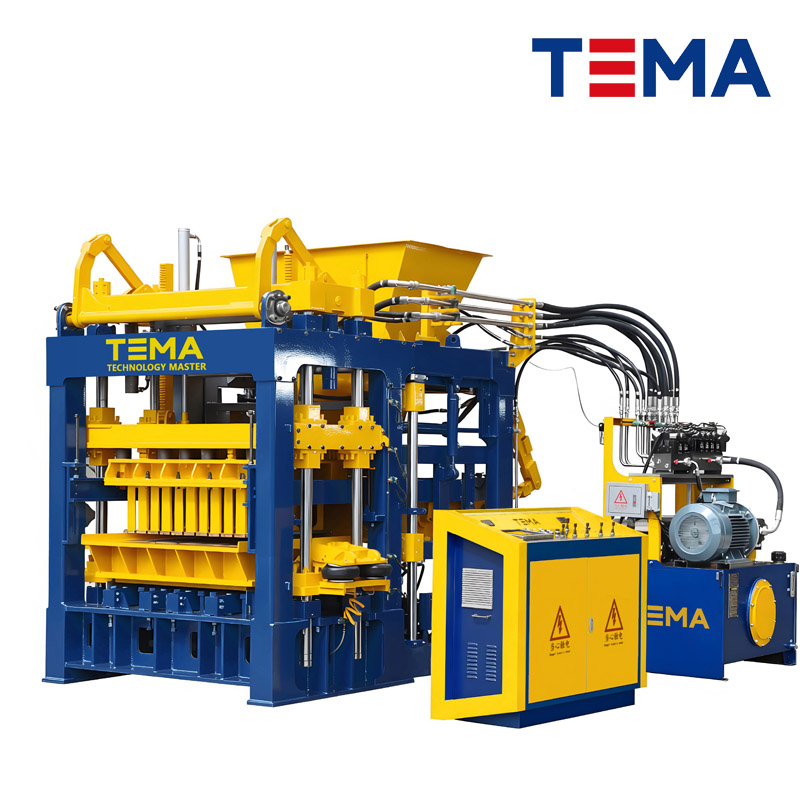

TM10000 Servo-Driven Vibration Concrete Paver Block Machine
The TM10000 is an advanced, high-performance concrete paver block machine engineered with state-of-the-art servo-driven vibration technology. Designed for heavy-duty, continuous industrial production, it combines premium international components to deliver unparalleled precision, speed, and product density.
The servo-driven system provides instantaneous response times, highly precise synchronization, and greater vibration force compared to traditional motors. This results in much denser paver blocks, faster cycle times, lower noise levels, and significant energy savings.
The TM10000 uses a specialized swing-arm feeder car. Because it is powered by a Siemens motor and regulated by a frequency inverter, the acceleration and deceleration of the feeding carriage are smoothly controlled. This prevents material segregation and ensures every mold cavity is filled evenly and accurately.
If you encounter any software or operational issues, our engineers can remotely connect to your machine's Siemens PLC system via the internet. We can run diagnostics, update parameters, and troubleshoot faults in real-time, eliminating the need to wait for a technician to arrive on-site and keeping your production running smoothly.
TM18000 High Capacity and Affordable Chinese Hollow Block Making Machine has a pallet size of 1400 x 1300mm, it is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
Read More
TM15000 German technology strong vibration paver block machine TM15000 German technology strong vibration paver block machine is a state-of-the-art machine for concrete block manufacturing, delivering exceptional efficiency and precision. It has a pallet size of 1400 × 1200mm which can maximum produce 20,000 pieces of 400×200×200mm hollow blocks or 1,500 square meter paver stone in 8 working hours. Pallet Size: 1400×1200×45mm Vibration Motors 4×12.8kw Servo drives-controlled Italian Physis servo motors Vibration Table Dynamic and static vibration table Control System German Siemens PLC Control Hydraulic System Japanese Yuken Proportional hydraulic valves, 37+22kw motor Feeder Car Design Double swing arms driven, Powered by 7.5kw motor Products Height 50-300mm, possible to heighten to 500mm Cycle Time: 15-20 Seconds Power Consumption: 115 kW Machine Gross Weight 21 Ton
Read More
TM12000 State-of-The-Art German Technology Concrete Block Machine TM12000 is a state-of-the-art concrete block machine, delivering exceptional efficiency and precision. It has pallet sizes of 1200 × 1150mm or 1400 × 950mm which can maximum produce 18,000 pieces of 400×200×200mm hollow blocks or 1,200 square meter paver stone in 8 working hours.
Read More
TM10000 Servo-Driven Vibration Concrete Paver Block Machine is a state-of-the-art machine for concrete block manufacturing, delivering exceptional efficiency and precision. It has a pallet size of 1100 × 950mm which can maximum produce 15,000 pieces of 400×200×200mm hollow blocks or 1,000 square meter paver stone in 8 working hours. Pallet Size: 1100×950×30（mm） Vibration Motors 2×12.8kw Servo drives-controlled Italian Physis servo motors Vibration Table Dynamic and static vibration table Control System German Siemens PLC Control Hydraulic System Japanese Yuken Proportional hydraulic valves, 30kw motor Feeder Car Design Double swing arms driven, Powered by 5.5kw motor Products Height 50-200mm, possible to heighten to 500mm Cycle Time: 15-20 Seconds Power Consumption: 61.5 kW Machine Gross Weight 14 Ton (Without mold and without Face Mix Hopper)
Read More
The TM9000 is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
Read More
TM8000 State-Of-The-Art Concrete Block Paver Production Line The TM8000 is a highly efficient automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality paver stone and hollow blocks.
Read More
The TM6000 is an advanced, low-cost concrete block making machine engineered to bridge the gap between affordability and heavy-duty performance. Specifically designed for startups and growing enterprises, it offers a robust platform for producing high-quality hollow blocks, solid bricks, and pavers. By integrating world-class components like Siemens PLC and Yuken Hydraulics, the TM6000 ensures industrial-grade reliability at an accessible price point. Pallet Size: 880×680×25mm Vibration Motors 2 × 9kw inverter-controlled vibration motors Vibration Table Dynamic and static vibration table Control System German Siemens PLC Control Hydraulic System Japanese Yuken Proportional hydraulic valves, 18.5kw motor Feeder Car Design Double swing arms driven, Powered by 3kw motor Products Height 50-200mm, Cycle Time: 15-20 Seconds Power Consumption: 40.5 kW Machine Gross Weight 7.5 Ton
Read More
The TM5000 is a highly efficient and economical low cost automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
