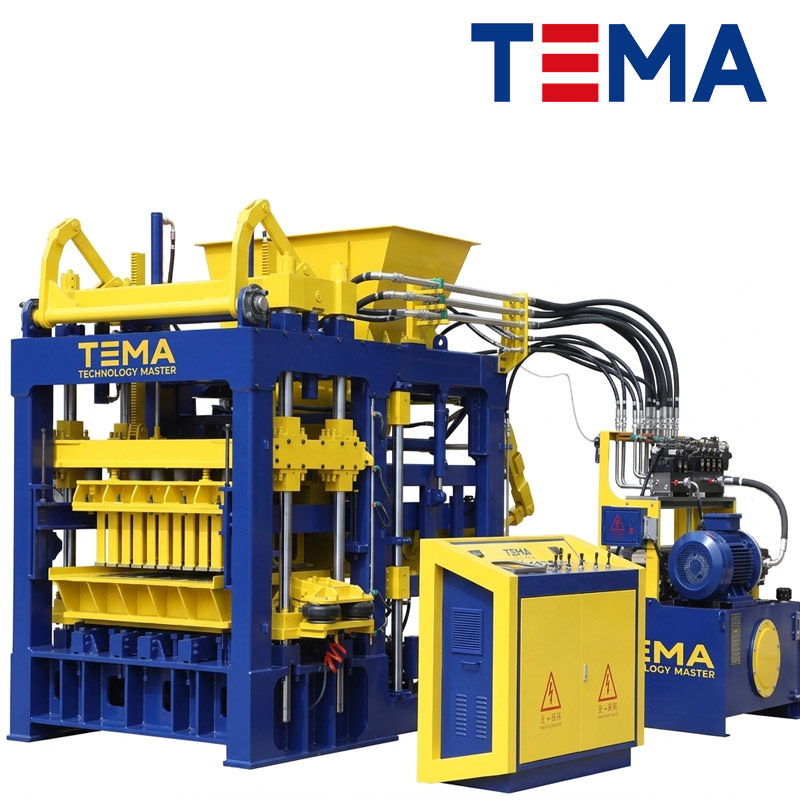

TM8000 State-Of-The-Art Concrete Block Paver Production Line
The TM8000 is a highly efficient automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality paver stone and hollow blocks.
TM8000 State-Of-The-Art Concrete Block Paver Production Line
The TM8000 is a highly efficient automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality paver stone and hollow blocks.
| TM9000 Specifications | |
|---|---|
| Pallet Size: 960×880×30 mm or 1100×750×30 mm | Vibration Force: 2×12.8kw (Servo-driven Controlled) / 120-135 KN |
| Forming Area: 900×830 mm or 1050×700 mm | Control System: Siemens PLC Control, Online Remote Service |
| Products Height: 50-200 mm, able to reach 500mm | Feeder Car Design: Double swing arms driven (Siemens motor) |
| Cycle Time: 15-20 Seconds | Hydraulic System: 22kw (Japanese Yuken proportional valves) |
| Machine Gross Weight: 12 Ton | Power Consumption: 55.55 kW |
| Product Type | Size (mm) | Pieces/Cycle | Production / 8 Working hours |
|---|---|---|---|
| Hollow Block | 400×200×200 | 8 | 10,000 - 12,000 |
| Hollow Block | 400×150×200 | 10 | 12,000 - 15,000 |
| Rectangular Paver | 200×100×60 | 28 | 28,000 - 42,000 |
| Zigzag Paver | 225×112.5×60 | 21 | 21,000 - 31,500 |
By simply replacing the molds, the TM8000 machine serves as a multi-purpose manufacturing machine for various concrete products:
The TM8000 is a versatile concrete paving block making machine. By changing the molds, it can efficiently produce paving blocks, fly ash bricks, hollow blocks, solid cement bricks, interlocking pavers, curbstones, and retaining wall blocks.
For standard 400x200x200mm hollow blocks, this automatic hollow block making machine yields about 12,000 to 15,000 pieces per 8 working hours shift, making it an excellent investment for medium to large-scale mass production.
Yes. Our TM8000 Paving brick manufacturing equipment is designed to utilize crushed stone, sand, cement, as well as fly ash, cinder, slag, and other industrial wastes, helping you save on material costs while producing high-quality concrete products.
TM18000 High Capacity and Affordable Chinese Hollow Block Making Machine has a pallet size of 1400 x 1300mm, it is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
Read More
TM15000 German technology strong vibration paver block machine TM15000 German technology strong vibration paver block machine is a state-of-the-art machine for concrete block manufacturing, delivering exceptional efficiency and precision. It has a pallet size of 1400 × 1200mm which can maximum produce 20,000 pieces of 400×200×200mm hollow blocks or 1,500 square meter paver stone in 8 working hours. Pallet Size: 1400×1200×45mm Vibration Motors 4×12.8kw Servo drives-controlled Italian Physis servo motors Vibration Table Dynamic and static vibration table Control System German Siemens PLC Control Hydraulic System Japanese Yuken Proportional hydraulic valves, 37+22kw motor Feeder Car Design Double swing arms driven, Powered by 7.5kw motor Products Height 50-300mm, possible to heighten to 500mm Cycle Time: 15-20 Seconds Power Consumption: 115 kW Machine Gross Weight 21 Ton
Read More
TM12000 State-of-The-Art German Technology Concrete Block Machine TM12000 is a state-of-the-art concrete block machine, delivering exceptional efficiency and precision. It has pallet sizes of 1200 × 1150mm or 1400 × 950mm which can maximum produce 18,000 pieces of 400×200×200mm hollow blocks or 1,200 square meter paver stone in 8 working hours.
Read More
TM10000 Servo-Driven Vibration Concrete Paver Block Machine is a state-of-the-art machine for concrete block manufacturing, delivering exceptional efficiency and precision. It has a pallet size of 1100 × 950mm which can maximum produce 15,000 pieces of 400×200×200mm hollow blocks or 1,000 square meter paver stone in 8 working hours. Pallet Size: 1100×950×30（mm） Vibration Motors 2×12.8kw Servo drives-controlled Italian Physis servo motors Vibration Table Dynamic and static vibration table Control System German Siemens PLC Control Hydraulic System Japanese Yuken Proportional hydraulic valves, 30kw motor Feeder Car Design Double swing arms driven, Powered by 5.5kw motor Products Height 50-200mm, possible to heighten to 500mm Cycle Time: 15-20 Seconds Power Consumption: 61.5 kW Machine Gross Weight 14 Ton (Without mold and without Face Mix Hopper)
Read More
The TM9000 is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.
Read More
TM8000 State-Of-The-Art Concrete Block Paver Production Line The TM8000 is a highly efficient automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality paver stone and hollow blocks.
Read More
