High Capacity Hollow Block Making Machine

TM18000 High Capacity and Affordable Hollow Block Making Machine

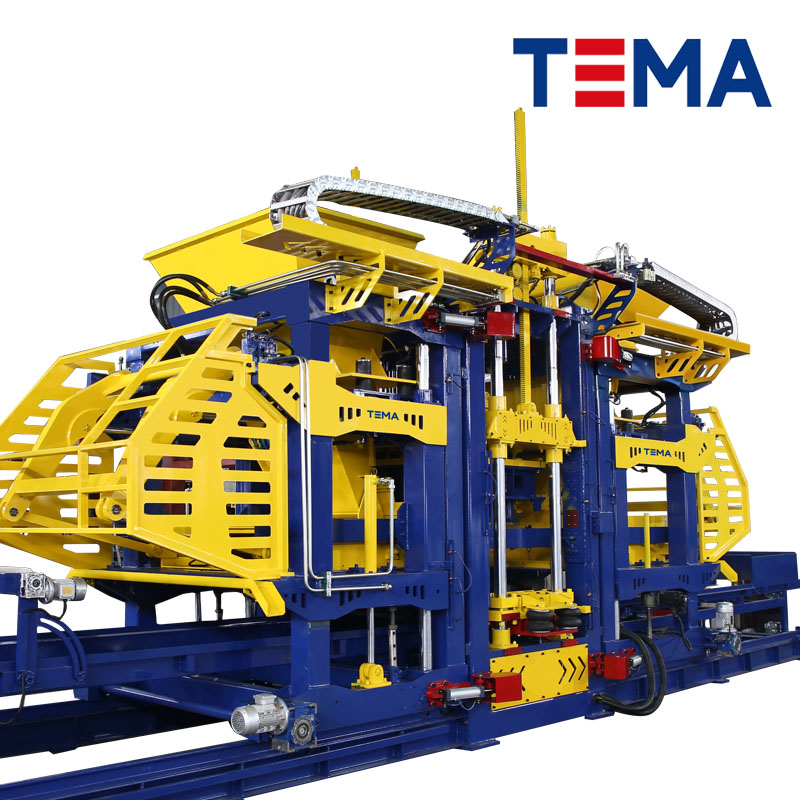

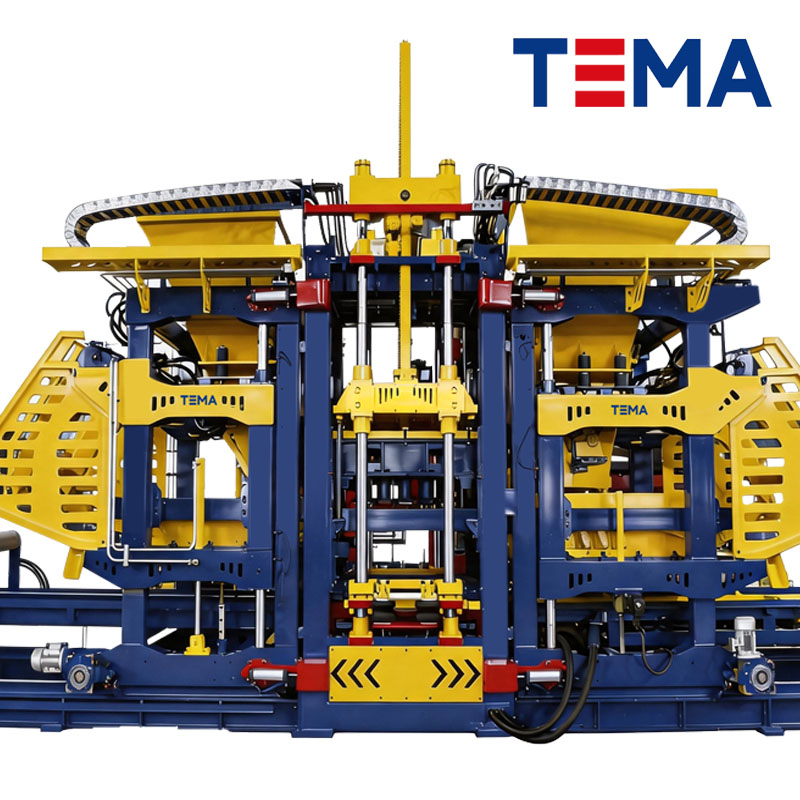

TM18000 High Capacity and Affordable Chinese Hollow Block Making Machine has a pallet size of 1400 x 1300mm, it is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.

Item No :
TM18000
Order(MOQ) :
1 Unit
Payment :
LC, TT, etc
Product Origin :
China
Color :
Blue & Yellow
Shipping Port :
Xiamen
Lead Time :
45 Working Days
Weight :
26 Ton

Product Details

TM18000 High Capacity & Affordable Chinese Hollow Block Making Machine

With a massive pallet size of 1400 x 1300mm, the TM18000 is a highly efficient automatic concrete block making machine. It is specifically engineered to provide an affordable, high-capacity solution for the versatile mass production of hollow blocks, paving bricks, curbstones, and solid bricks.

Product Features

Heavy-Duty Construction: Engineered with a 200*200mm square tube frame and four solid Φ100mm guide columns to withstand the rigorous demands of high-capacity daily production.
High-Volume Material Feeding: The frequency-controlled swing arm feeder is optimized for large molds, ensuring rapid and even distribution of raw materials, including industrial waste like fly ash.
Cost-Effective Hydraulic Efficiency: Utilizes a robust Japanese Yuken dual-proportional valve system, balancing high-speed operation with long-term affordability and low maintenance.
Intelligent Siemens Automation: Features a fully automated German Siemens PLC, minimizing labor costs while maximizing output precision and consistency.
Servo-Driven Compaction: Equipped with four 16.5kw servo motors (generating 160-185 KN force) to deeply compact high volumes of concrete, ensuring top-tier density for hollow blocks and pavers.
Global Remote Diagnostics: Integrated smart troubleshooting ensures that despite being an affordable machine, you receive premium, instant technical support to eliminate downtime.

Technical Parameters

TM18000 Specifications
Pallet Size: 1400×1300×45 mm	Vibration Force: 4×16.5kw (Servo-driven Controlled) / 160-185 KN
Forming Area: 1350×1250 mm	Control System: Siemens PLC Control, Online Remote Service
Products Height: 50-500mm	Feeder Car Design: Double swing arms driven (Siemens motor)
Cycle Time: 15-20 Seconds	Hydraulic System: 37+22kw (Japanese Yuken proportional valves)
Machine Gross Weight: 25 Ton	Power Consumption: 140 kW

Production Capacity (8-10 hours)

Product Type	Size (mm)	Pieces/Cycle	Production / 8-10 hours
Hollow Block	400×200×200	18	21,600 - 27,000
Hollow Block	400×150×200	24	28,800 - 36,000
Rectangular Paver	200×100×60	60	60,000 - 90,000
Zigzag Paver	225×112.5×60	50	30,000 - 45,000

Applications

By simply replacing the molds, the TM18000 High capacity hollow block machine serves as a multi-purpose manufacturing equipment for various concrete blocks:

Wall Materials: Standard hollow blocks, solid bricks, retaining wall block and porous bricks for building construction.
Road & Landscaping: Pavers, paving bricks, paving blocks, zigzag pavers, interlocking bricks, and grass pavers.
Infrastructure: Heavy-duty curbstones, road edge stones, and water conservancy protective blocks.

Frequently Asked Questions

What kind of products can the TM18000 concrete block machine produce?

The TM18000 is a high capacity hollow block making machine. By changing the molds, it can efficiently produce paving bricks, hollow blocks, solid cement bricks, interlocking pavers, curbstones, and retaining wall blocks.

What is the daily output for standard hollow blocks?

For standard 400x200x200mm hollow blocks, this high capacity hollow block making machine yields about 21,600 to 27,000 pieces per 8-10 hour shift, making it an excellent investment for large-scale mass production.

Can this paver making machine use fly ash or industrial waste?

Yes. Our TM18000 high capacity hollow block making machine is designed to use crushed stone, sand, stone powder, cement, as well as coal fly ash, cinder, slag, and other industrial wastes, helping you save on material costs while producing high-quality masonry products.
