High-Performance & Servo Block Machines

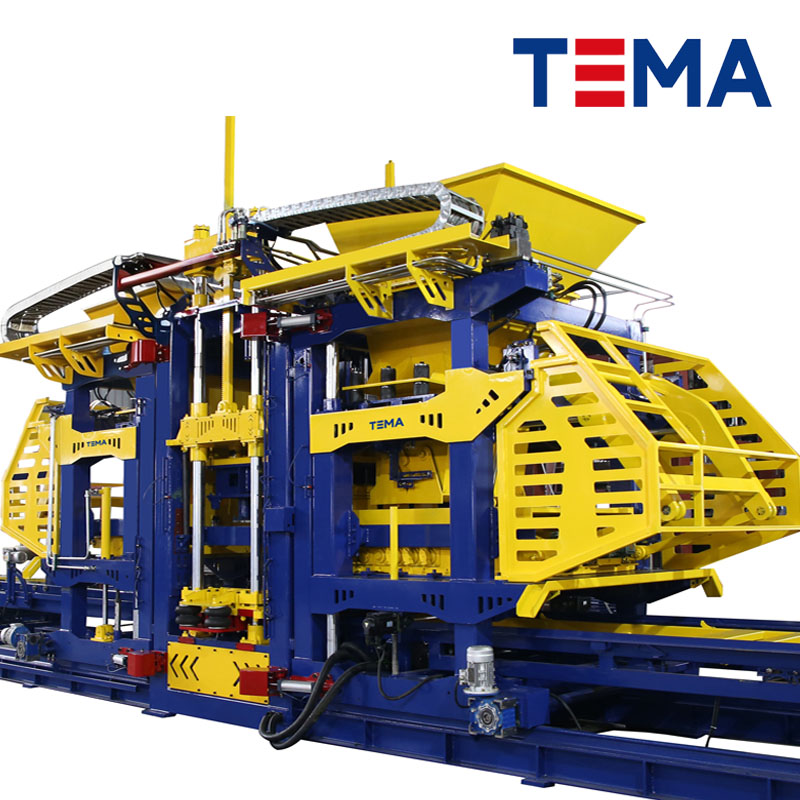

TM18000 High Capacity and Affordable Chinese Hollow Block Making Machine has a pallet size of 1400 x 1300mm, it is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.

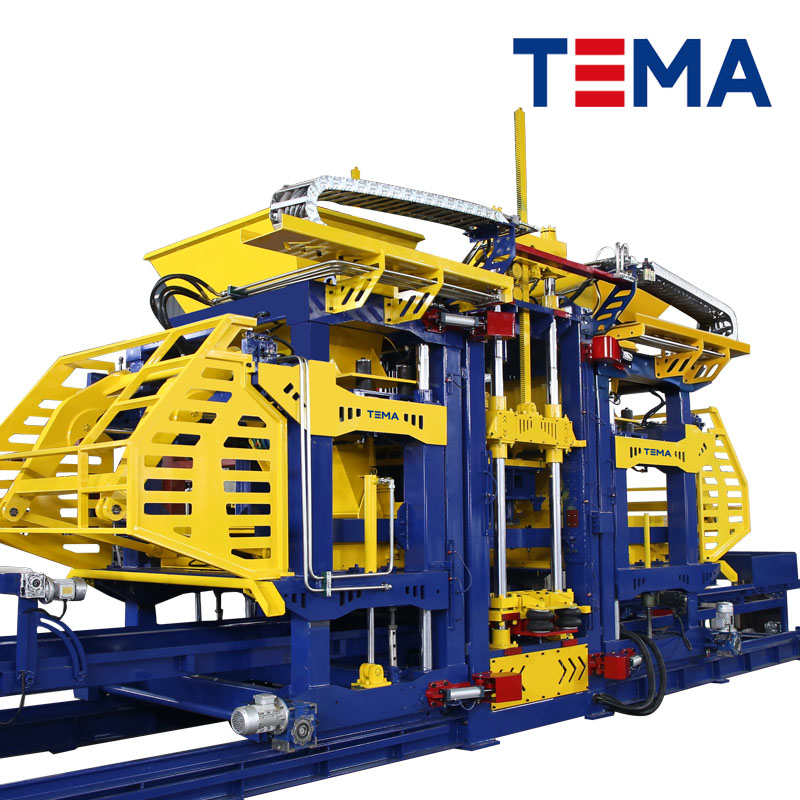

TM15000 German technology strong vibration paver block machine TM15000 German technology strong vibration paver block machine is a state-of-the-art machine for concrete block manufacturing, delivering exceptional efficiency and precision. It has a pallet size of 1400 × 1200mm which can maximum produce 20,000 pieces of 400×200×200mm hollow blocks or 1,500 square meter paver stone in 8 working hours. Pallet Size: 1400×1200×45mm Vibration Motors 4×12.8kw Servo drives-controlled Italian Physis servo motors Vibration Table Dynamic and static vibration table Control System German Siemens PLC Control Hydraulic System Japanese Yuken Proportional hydraulic valves, 37+22kw motor Feeder Car Design Double swing arms driven, Powered by 7.5kw motor Products Height 50-300mm, possible to heighten to 500mm Cycle Time: 15-20 Seconds Power Consumption: 115 kW Machine Gross Weight 21 Ton

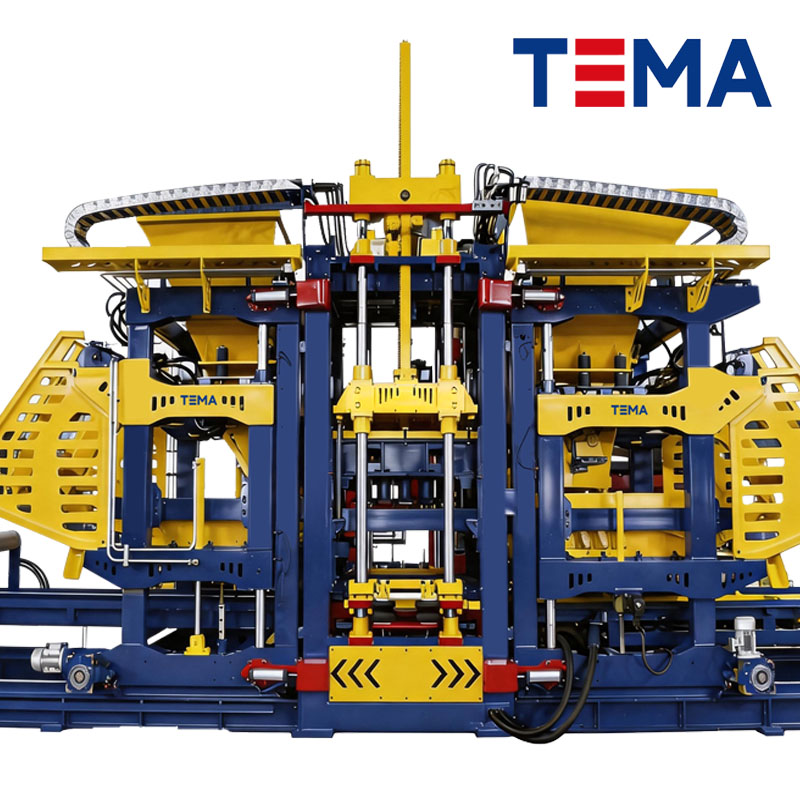

TM12000 State-of-The-Art German Technology Concrete Block Machine TM12000 is a state-of-the-art concrete block machine, delivering exceptional efficiency and precision. It has pallet sizes of 1200 × 1150mm or 1400 × 950mm which can maximum produce 18,000 pieces of 400×200×200mm hollow blocks or 1,200 square meter paver stone in 8 working hours.

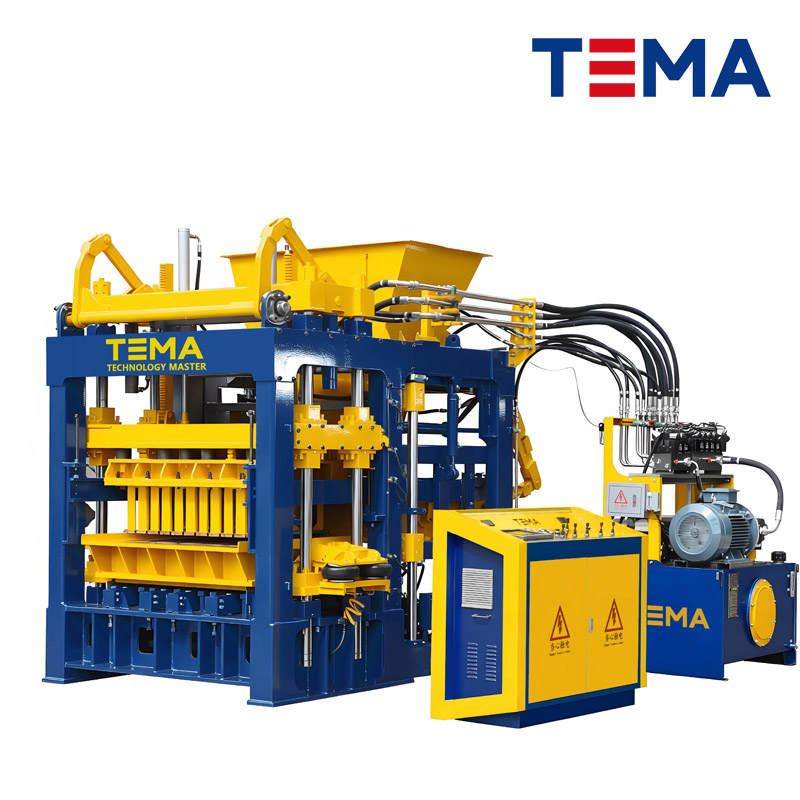

TM10000 Servo-Driven Vibration Concrete Paver Block Machine is a state-of-the-art machine for concrete block manufacturing, delivering exceptional efficiency and precision. It has a pallet size of 1100 × 950mm which can maximum produce 15,000 pieces of 400×200×200mm hollow blocks or 1,000 square meter paver stone in 8 working hours.   Pallet Size: 1100×950×30（mm） Vibration Motors 2×12.8kw Servo drives-controlled Italian Physis servo motors Vibration Table Dynamic and static vibration table Control System German Siemens PLC Control Hydraulic System Japanese Yuken Proportional hydraulic valves, 30kw motor Feeder Car Design Double swing arms driven, Powered by 5.5kw motor Products Height 50-200mm, possible to heighten to 500mm Cycle Time: 15-20 Seconds Power Consumption: 61.5 kW Machine Gross Weight 14 Ton (Without mold and without Face Mix Hopper)

The TM9000 is a highly efficient automatic concrete block and paving brick making machine, specifically engineered for the versatile production of high-quality paving brick, curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.

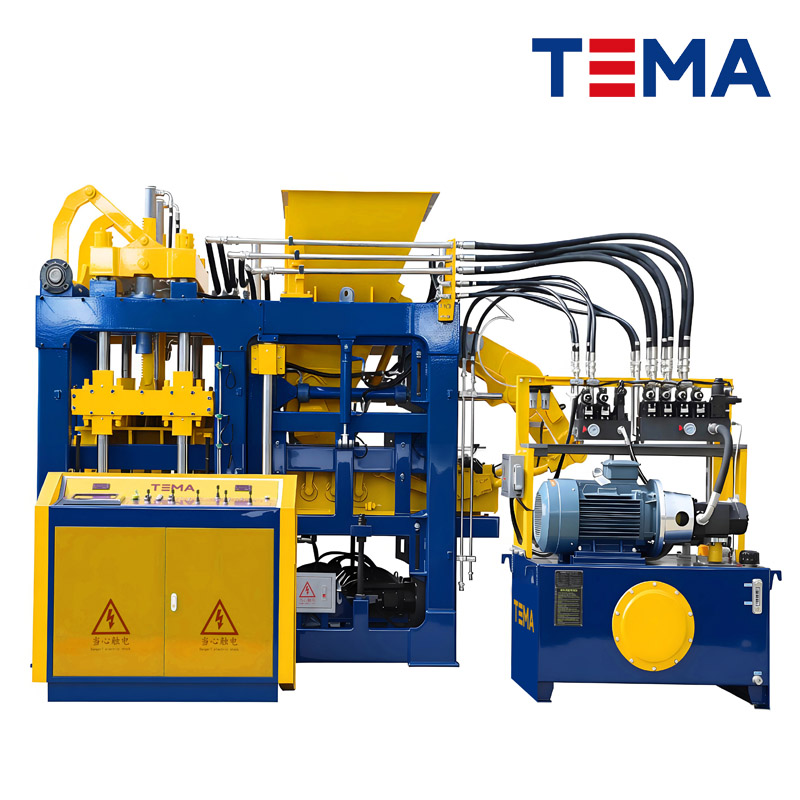

TM8000 State-Of-The-Art Concrete Block Paver Production Line  The TM8000 is a highly efficient automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality paver stone and hollow blocks.
